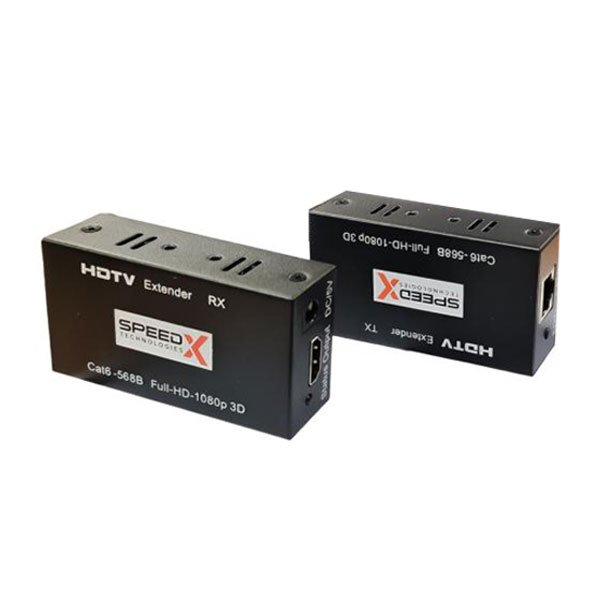

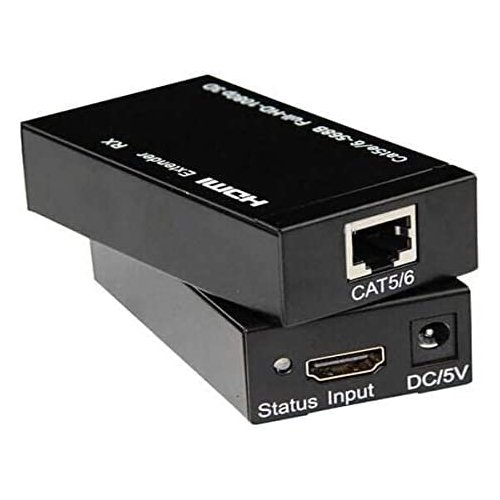

This HDMI Extender not only can work as other normal HDMI extender by CAT5/6 cable up to 60 meters, but also can transmit HDMI data over local network. It also could work in broadcast mode, like HDMI splitter, broadcast HDMI signal from one sender to multiple receivers.

How to use: https://youtu.be/db5SN8kGYmc

Specification

• Extends HDMI signal up to 60 meters for 1080p over CAT5e/6 cable
• Supports TCP/IP, extends HDMI signal unlimitedly over router or hub/switch
• Follows the standard of IEEE-568B
• Supports resolutions up to full HD1080p:480i@60Hz,480p@60Hz,576i@50Hz,576p@50Hz,
• 720p@50/60Hz,1080i@50/60Hz,1080p@50/60Hz 1080p@24Hz
• HDCP compliant
• Power supply 1pcs of DC5V/1A

Package Includes

1 x Receiver

1 x Sender

1 x User Manual

2 x Power adapter
